dialysis machine :Be applicable of hemodialysis treatment, hemoperfusion, Plasma Exchange, Pure ultrafiltration project...

dialysis machine :

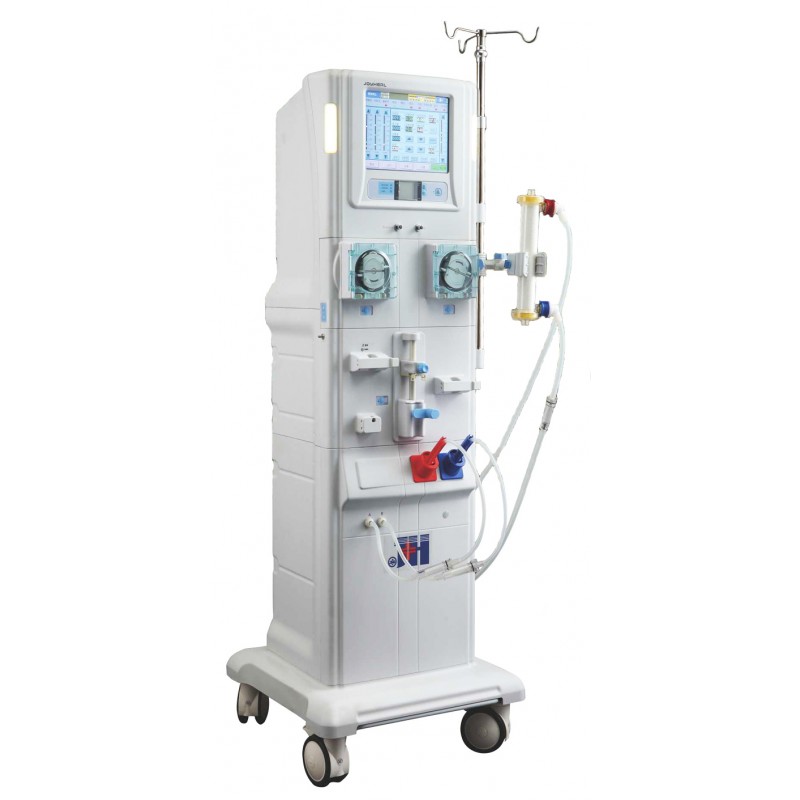

Hemodialysis machine :Be applicable of hemodialysis treatment, hemoperfusion, Plasma Exchange, Pure ultrafiltration project. Touch acreen was equipped and it can show Na and UF profiles;In addition, the function ie. Backup power supply, Kt/V, HCO₃, adjustment, single needle and acetate treatment are optional.

Volume (length× width ×height): 370mm×340mm ×1570mm

Weight: about 90kg

Power supply voltage: AC220V±10%  ·Frequency: 50HZ ~ 60 HZ ·Power: 1500W

Blood pump/spare pump: ·Flux: 15 ~ 340ml/min ( 6mm) 20 ~ 460 ml/min ( 8mm)

Heparin pump:

·Flux: 0.1ml/h10ml/h(±5%)

·Precise: 0.1ml/h

·Injector size: 20ml/30ml/50ml 10ml/20ml/30ml(selectable)

Arterial pressure  ·

·display scope:-300mmHg+300mmHg   (±10mmHg)

Venous pressure:

·display scope:-50mmHg+300mmHg  (±10mmHg)

Dialysate flow: 300ml/min800ml/min linearity adjustable   (+10%)  (-5%)

·Temperature:35.0~39.0

·Resolving rate:0.1

·Conductivity:13mS/cm~15.5mS/cm

(±0.1 mS/cm)

UF flow scope: 01800ml/h(±30ml/h )

04000ml/h(optional)

ISO UF flow scope:02000ml/h(±30ml/h)

TMP:

·Scope:-100mmHg+600mmHg

(±20mmHg)

Blood leakage monitor:

·over 1ml blood per liter dialysate (flow:500ml/min)

Blood level monitor: ultrasonic sensor

Air bubble monitor:

·Infrared and response threshold value:

Single air bubble of 200 l exists when Blood flux is 200ml/min

Inflow pressure:0MPa0.6Mpa

Inflow temperature: 530

Environment temperature: 1030,

·Relative humidity≤70%

Rinse/disinfection: chemical disinfection

(citric acid,peracetic acid and oxalic acid)

Hot rinse: 80

Back-up power supply: last for 15-30min after electric-cut
